CigiBaseViewCtrl Class Reference

#include <CigiBaseViewCtrl.h>

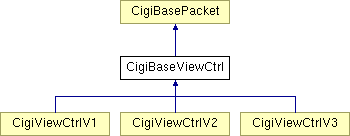

Inheritance diagram for CigiBaseViewCtrl:

CigiBasePacket CigiViewCtrlV1 CigiViewCtrlV2 CigiViewCtrlV3 List of all members.

Public Member Functions

 CigiBaseViewCtrl ()
virtual ~CigiBaseViewCtrl ()
virtual int Pack (CigiBasePacket *Base, Cigi_uint8 *Buff, void *Spec) const =0
virtual int Unpack (Cigi_uint8 *Buff, bool Swap, void *Spec)=0
virtual int GetCnvt (CigiVersionID &CnvtVersion, CigiCnvtInfoType::Type &CnvtInfo)
int SetEntityID (const Cigi_uint16 EntityIDIn, bool bndchk=true)
Cigi_uint16 GetEntityID (void) const
int SetXOff (const float XOffIn, bool bndchk=true)
float GetXOff (void) const
int SetYOff (const float YOffIn, bool bndchk=true)
float GetYOff (void) const
int SetZOff (const float ZOffIn, bool bndchk=true)
float GetZOff (void) const
int SetRoll (const float RollIn, bool bndchk=true)
float GetRoll (void) const
int SetPitch (const float PitchIn, bool bndchk=true)
float GetPitch (void) const
int SetYaw (const float YawIn, bool bndchk=true)
float GetYaw (void) const

Protected Attributes

Cigi_uint16 EntityID
Cigi_uint16 ViewID
Cigi_uint8 GroupID
bool XOffEn
bool YOffEn
bool ZOffEn
bool RollEn
bool PitchEn
bool YawEn
float XOff
float YOff
float ZOff
float Roll
float Pitch
float Yaw

Friends

class CigiViewCtrlV1
class CigiViewCtrlV2
class CigiViewCtrlV3

Detailed Description

Definition at line 79 of file CigiBaseViewCtrl.h.

Constructor & Destructor Documentation

CigiBaseViewCtrl::CigiBaseViewCtrl (  )

General Constructor

Definition at line 60 of file CigiBaseViewCtrl.cpp.

00061 {
00062
00063 }

CigiBaseViewCtrl::~CigiBaseViewCtrl (  )  [virtual]

General Destructor

Definition at line 70 of file CigiBaseViewCtrl.cpp.

00071 {
00072
00073 }

Member Function Documentation

int CigiBaseViewCtrl::GetCnvt ( CigiVersionID &  CnvtVersion,
CigiCnvtInfoType::Type &  CnvtInfo
) [virtual]

A virtual Conversion Information function. This function provides conversion information for this packet.

Parameters:
CnvtVersion - The CIGI version to which this packet is being converted.
CnvtInfo - The information needed for conversion
Returns:
This returns CIGI_SUCCESS or an error code defined in CigiErrorCodes.h

Reimplemented from CigiBasePacket.

Definition at line 84 of file CigiBaseViewCtrl.cpp.

References CIGI_SUCCESS, CIGI_VIEW_CTRL_PACKET_ID_V2, CIGI_VIEW_CTRL_PACKET_ID_V3, CigiVersionID::CigiMajorVersion, CigiCnvtInfoType::CigiCnvtInfoStruct::CnvtPacketID, CigiCnvtInfoType::CigiCnvtInfoStruct::ProcID, and CigiProcessType::ProcStd.

00086 {
00087    CnvtInfo.ProcID = CigiProcessType::ProcStd;
00088
00089    // V1 & V2 have the same packet id number
00090    if(CnvtVersion.CigiMajorVersion < 3)
00091       CnvtInfo.CnvtPacketID = CIGI_VIEW_CTRL_PACKET_ID_V2;
00092    else
00093       CnvtInfo.CnvtPacketID = CIGI_VIEW_CTRL_PACKET_ID_V3;
00094
00095    return(CIGI_SUCCESS);
00096 }

Cigi_uint16 CigiBaseViewCtrl::GetEntityID ( void   )  const [inline]

Gets the EntityID value.

Returns:
the current EntityID.

Definition at line 166 of file CigiBaseViewCtrl.h.

References EntityID.

00166 { return(EntityID); }

float CigiBaseViewCtrl::GetPitch ( void   )  const [inline]

Gets the Pitch value.

Returns:
the current Pitch.

Definition at line 268 of file CigiBaseViewCtrl.h.

References Pitch.

00268 { return(Pitch); }

float CigiBaseViewCtrl::GetRoll ( void   )  const [inline]

Gets the Roll value.

Returns:
the current Roll.

Definition at line 250 of file CigiBaseViewCtrl.h.

References Roll.

00250 { return(Roll); }

float CigiBaseViewCtrl::GetXOff ( void   )  const [inline]

Gets the XOff value.

Returns:
the current XOff.

Definition at line 188 of file CigiBaseViewCtrl.h.

References XOff.

00188 { return(XOff); }

float CigiBaseViewCtrl::GetYaw ( void   )  const [inline]

Gets the Yaw value.

Returns:
the current Yaw.

Definition at line 286 of file CigiBaseViewCtrl.h.

References Yaw.

00286 { return(Yaw); }

float CigiBaseViewCtrl::GetYOff ( void   )  const [inline]

Gets the YOff value.

Returns:
the current YOff.

Definition at line 210 of file CigiBaseViewCtrl.h.

References YOff.

00210 { return(YOff); }

float CigiBaseViewCtrl::GetZOff ( void   )  const [inline]

Gets the ZOff value.

Returns:
the current ZOff.

Definition at line 232 of file CigiBaseViewCtrl.h.

References ZOff.

00232 { return(ZOff); }

virtual int CigiBaseViewCtrl::Pack ( CigiBasePacket *  Base,
Cigi_uint8 *  Buff,
void *  Spec
) const [pure virtual]

A pure virtual Pack function. This function is not implemented in this class.

Parameters:
Base - A pointer to the instance of the packet to be packed. (Downcast to CigiBasePacket)
Buff - A pointer to the current pack point.
Spec - A pointer to special data.
Returns:
This returns CIGI_SUCCESS or an error code defined in CigiErrorCodes.h

Implements CigiBasePacket.

Implemented in CigiViewCtrlV1, CigiViewCtrlV2, and CigiViewCtrlV3.

int CigiBaseViewCtrl::SetEntityID ( const Cigi_uint16  EntityIDIn,
bool  bndchk = true
) [inline]

Sets the EntityID with bound checking control

Parameters:
EntityIDIn - Identifies the entity which the view or view group should be attached.
bndchk - Enables (true) or disables (false) bounds checking.
Returns:
This returns CIGI_SUCCESS or an error code defined in CigiErrorCodes.h

Definition at line 157 of file CigiBaseViewCtrl.h.

References CIGI_SUCCESS, and EntityID.

00158    {
00159       EntityID = EntityIDIn;
00160       return(CIGI_SUCCESS);
00161    }

int CigiBaseViewCtrl::SetPitch ( const float  PitchIn,
bool  bndchk = true
)

Sets the Pitch with bound checking control

Parameters:
PitchIn - The pitch about the specified entity's body coordinate system.
bndchk - Enables (true) or disables (false) bounds checking.
Returns:
This returns CIGI_SUCCESS or an error code defined in CigiErrorCodes.h

Definition at line 129 of file CigiBaseViewCtrl.cpp.

References CIGI_ERROR_VALUE_OUT_OF_RANGE, CIGI_SUCCESS, and Pitch.

00130 {
00131
00132 #ifndef CIGI_NO_BND_CHK
00133    if(bndchk && ((PitchIn < -90.0)||(PitchIn > 90.0)))
00134    {
00135 #ifndef CIGI_NO_EXCEPT
00136       throw CigiValueOutOfRangeException("Pitch",(float)PitchIn,-90.0,90.0);
00137 #endif
00138       return(CIGI_ERROR_VALUE_OUT_OF_RANGE);
00139    }
00140 #endif
00141
00142    Pitch = PitchIn;
00143    return(CIGI_SUCCESS);
00144
00145 }

int CigiBaseViewCtrl::SetRoll ( const float  RollIn,
bool  bndchk = true
)

Sets the Roll with bound checking control

Parameters:
RollIn - The roll about the specified entity's body coordinate system.
bndchk - Enables (true) or disables (false) bounds checking.
Returns:
This returns CIGI_SUCCESS or an error code defined in CigiErrorCodes.h

Definition at line 107 of file CigiBaseViewCtrl.cpp.

References CIGI_ERROR_VALUE_OUT_OF_RANGE, CIGI_SUCCESS, and Roll.

00108 {
00109
00110 #ifndef CIGI_NO_BND_CHK
00111    if(bndchk && ((RollIn < -180.0)||(RollIn > 180.0)))
00112    {
00113 #ifndef CIGI_NO_EXCEPT
00114       throw CigiValueOutOfRangeException("Roll",(float)RollIn,-180.0,180.0);
00115 #endif
00116       return(CIGI_ERROR_VALUE_OUT_OF_RANGE);
00117    }
00118 #endif
00119
00120    Roll = RollIn;
00121    return(CIGI_SUCCESS);
00122
00123 }

int CigiBaseViewCtrl::SetXOff ( const float  XOffIn,
bool  bndchk = true
) [inline]

Sets the XOff with bound checking control

Parameters:
XOffIn - The Offset from the specified entity's origin along the entity's X axis.
bndchk - Enables (true) or disables (false) bounds checking.
Returns:
This returns CIGI_SUCCESS or an error code defined in CigiErrorCodes.h

Definition at line 179 of file CigiBaseViewCtrl.h.

References CIGI_SUCCESS, and XOff.

00180    {
00181       XOff = XOffIn;
00182       return(CIGI_SUCCESS);
00183    }

int CigiBaseViewCtrl::SetYaw ( const float  YawIn,
bool  bndchk = true
)

Sets the Yaw with bound checking control

Parameters:
YawIn - The yaw about the specified entity's body coordinate system.
bndchk - Enables (true) or disables (false) bounds checking.
Returns:
This returns CIGI_SUCCESS or an error code defined in CigiErrorCodes.h

Definition at line 151 of file CigiBaseViewCtrl.cpp.

References CIGI_ERROR_VALUE_OUT_OF_RANGE, CIGI_SUCCESS, and Yaw.

00152 {
00153
00154 #ifndef CIGI_NO_BND_CHK
00155    if(bndchk && ((YawIn < 0.0)||(YawIn > 360.0)))
00156    {
00157 #ifndef CIGI_NO_EXCEPT
00158       throw CigiValueOutOfRangeException("Yaw",(float)YawIn,0.0,360.0);
00159 #endif
00160       return(CIGI_ERROR_VALUE_OUT_OF_RANGE);
00161    }
00162 #endif
00163
00164    Yaw = YawIn;
00165    return(CIGI_SUCCESS);
00166
00167 }

int CigiBaseViewCtrl::SetYOff ( const float  YOffIn,
bool  bndchk = true
) [inline]

Sets the YOff with bound checking control

Parameters:
YOffIn - The Offset from the specified entity's origin along the entity's Y axis.
bndchk - Enables (true) or disables (false) bounds checking.
Returns:
This returns CIGI_SUCCESS or an error code defined in CigiErrorCodes.h

Definition at line 201 of file CigiBaseViewCtrl.h.

References CIGI_SUCCESS, and YOff.

00202    {
00203       YOff = YOffIn;
00204       return(CIGI_SUCCESS);
00205    }

int CigiBaseViewCtrl::SetZOff ( const float  ZOffIn,
bool  bndchk = true
) [inline]

Sets the ZOff with bound checking control

Parameters:
ZOffIn - The Offset from the specified entity's origin along the entity's Z axis.
bndchk - Enables (true) or disables (false) bounds checking.
Returns:
This returns CIGI_SUCCESS or an error code defined in CigiErrorCodes.h

Definition at line 223 of file CigiBaseViewCtrl.h.

References CIGI_SUCCESS, and ZOff.

00224    {
00225       ZOff = ZOffIn;
00226       return(CIGI_SUCCESS);
00227    }

virtual int CigiBaseViewCtrl::Unpack ( Cigi_uint8 *  Buff,
bool  Swap,
void *  Spec
) [pure virtual]

A pure virtual Unpack function. This function is not implemented in this class.

Parameters:
Buff - A pointer to the current pack point.
Swap - N/A for V1 & V2
Spec - A pointer to special data.
Returns:
This returns CIGI_SUCCESS or an error code defined in CigiErrorCodes.h

Implements CigiBasePacket.

Implemented in CigiViewCtrlV1, CigiViewCtrlV2, and CigiViewCtrlV3.

Friends And Related Function Documentation

friend class CigiViewCtrlV1 [friend]

Definition at line 82 of file CigiBaseViewCtrl.h.

friend class CigiViewCtrlV2 [friend]

Definition at line 83 of file CigiBaseViewCtrl.h.

friend class CigiViewCtrlV3 [friend]

Definition at line 84 of file CigiBaseViewCtrl.h.

Member Data Documentation

Cigi_uint16 CigiBaseViewCtrl::EntityID [protected]

EntityID
Uniquely identifies the specific entity

Definition at line 298 of file CigiBaseViewCtrl.h.

Referenced by CigiViewCtrlV1::CigiViewCtrlV1(), CigiViewCtrlV2::CigiViewCtrlV2(), CigiViewCtrlV3::CigiViewCtrlV3(), GetEntityID(), CigiViewCtrlV3::Pack(), CigiViewCtrlV2::Pack(), CigiViewCtrlV1::Pack(), SetEntityID(), CigiViewCtrlV3::Unpack(), CigiViewCtrlV2::Unpack(), and CigiViewCtrlV1::Unpack().

Cigi_uint8 CigiBaseViewCtrl::GroupID [protected]

GroupID
Specifies the view group that this packet controls.

Definition at line 311 of file CigiBaseViewCtrl.h.

Referenced by CigiViewCtrlV1::CigiViewCtrlV1(), CigiViewCtrlV2::CigiViewCtrlV2(), CigiViewCtrlV3::CigiViewCtrlV3(), CigiViewCtrlV3::Pack(), CigiViewCtrlV2::Pack(), CigiViewCtrlV1::Pack(), CigiViewCtrlV2::SetGroupID(), CigiViewCtrlV1::SetGroupID(), CigiViewCtrlV3::Unpack(), CigiViewCtrlV2::Unpack(), and CigiViewCtrlV1::Unpack().

float CigiBaseViewCtrl::Pitch [protected]

Pitch
The pitch about the specified entity's body coordinate system.

Definition at line 380 of file CigiBaseViewCtrl.h.

Referenced by CigiViewCtrlV1::CigiViewCtrlV1(), CigiViewCtrlV2::CigiViewCtrlV2(), CigiViewCtrlV3::CigiViewCtrlV3(), GetPitch(), CigiViewCtrlV3::Pack(), CigiViewCtrlV2::Pack(), CigiViewCtrlV1::Pack(), SetPitch(), CigiViewCtrlV3::Unpack(), CigiViewCtrlV2::Unpack(), and CigiViewCtrlV1::Unpack().

bool CigiBaseViewCtrl::PitchEn [protected]

PitchEn
Pitch data valid and to be used.

Definition at line 341 of file CigiBaseViewCtrl.h.

Referenced by CigiViewCtrlV1::CigiViewCtrlV1(), CigiViewCtrlV2::CigiViewCtrlV2(), CigiViewCtrlV3::CigiViewCtrlV3(), CigiViewCtrlV3::Pack(), CigiViewCtrlV2::Pack(), CigiViewCtrlV3::Unpack(), and CigiViewCtrlV2::Unpack().

float CigiBaseViewCtrl::Roll [protected]

Roll
The roll about the specified entity's body coordinate system.

Definition at line 374 of file CigiBaseViewCtrl.h.

Referenced by CigiViewCtrlV1::CigiViewCtrlV1(), CigiViewCtrlV2::CigiViewCtrlV2(), CigiViewCtrlV3::CigiViewCtrlV3(), GetRoll(), CigiViewCtrlV3::Pack(), CigiViewCtrlV2::Pack(), CigiViewCtrlV1::Pack(), SetRoll(), CigiViewCtrlV3::Unpack(), CigiViewCtrlV2::Unpack(), and CigiViewCtrlV1::Unpack().

bool CigiBaseViewCtrl::RollEn [protected]

RollEn
Roll data valid and to be used.

Definition at line 335 of file CigiBaseViewCtrl.h.

Referenced by CigiViewCtrlV1::CigiViewCtrlV1(), CigiViewCtrlV2::CigiViewCtrlV2(), CigiViewCtrlV3::CigiViewCtrlV3(), CigiViewCtrlV3::Pack(), CigiViewCtrlV2::Pack(), CigiViewCtrlV3::Unpack(), and CigiViewCtrlV2::Unpack().

Cigi_uint16 CigiBaseViewCtrl::ViewID [protected]

ViewID
Specifies the view that this packet controls.
If The Group ID is not 0, ViewID is ignored.

Definition at line 305 of file CigiBaseViewCtrl.h.

Referenced by CigiViewCtrlV1::CigiViewCtrlV1(), CigiViewCtrlV2::CigiViewCtrlV2(), CigiViewCtrlV3::CigiViewCtrlV3(), CigiViewCtrlV3::Pack(), CigiViewCtrlV2::Pack(), CigiViewCtrlV1::Pack(), CigiViewCtrlV2::SetViewID(), CigiViewCtrlV1::SetViewID(), CigiViewCtrlV3::Unpack(), CigiViewCtrlV2::Unpack(), and CigiViewCtrlV1::Unpack().

float CigiBaseViewCtrl::XOff [protected]

XOff
The Offset from the specified entity's origin along the entity's X axis.

Definition at line 354 of file CigiBaseViewCtrl.h.

Referenced by CigiViewCtrlV1::CigiViewCtrlV1(), CigiViewCtrlV2::CigiViewCtrlV2(), CigiViewCtrlV3::CigiViewCtrlV3(), GetXOff(), CigiViewCtrlV3::Pack(), CigiViewCtrlV2::Pack(), CigiViewCtrlV1::Pack(), SetXOff(), CigiViewCtrlV3::Unpack(), CigiViewCtrlV2::Unpack(), and CigiViewCtrlV1::Unpack().

bool CigiBaseViewCtrl::XOffEn [protected]

XOffEn
X Offset data valid and to be used.

Definition at line 317 of file CigiBaseViewCtrl.h.

Referenced by CigiViewCtrlV1::CigiViewCtrlV1(), CigiViewCtrlV2::CigiViewCtrlV2(), CigiViewCtrlV3::CigiViewCtrlV3(), CigiViewCtrlV3::Pack(), CigiViewCtrlV2::Pack(), CigiViewCtrlV3::Unpack(), and CigiViewCtrlV2::Unpack().

float CigiBaseViewCtrl::Yaw [protected]

Yaw
The yaw about the specified entity's body coordinate system.

Definition at line 386 of file CigiBaseViewCtrl.h.

Referenced by CigiViewCtrlV1::CigiViewCtrlV1(), CigiViewCtrlV2::CigiViewCtrlV2(), CigiViewCtrlV3::CigiViewCtrlV3(), GetYaw(), CigiViewCtrlV3::Pack(), CigiViewCtrlV2::Pack(), CigiViewCtrlV1::Pack(), SetYaw(), CigiViewCtrlV3::Unpack(), CigiViewCtrlV2::Unpack(), and CigiViewCtrlV1::Unpack().

bool CigiBaseViewCtrl::YawEn [protected]

YawEn
Yaw data valid and to be used.

Definition at line 347 of file CigiBaseViewCtrl.h.

Referenced by CigiViewCtrlV1::CigiViewCtrlV1(), CigiViewCtrlV2::CigiViewCtrlV2(), CigiViewCtrlV3::CigiViewCtrlV3(), CigiViewCtrlV3::Pack(), CigiViewCtrlV2::Pack(), CigiViewCtrlV3::Unpack(), and CigiViewCtrlV2::Unpack().

float CigiBaseViewCtrl::YOff [protected]

YOff
The Offset from the specified entity's origin along the entity's Y axis.

Definition at line 361 of file CigiBaseViewCtrl.h.

Referenced by CigiViewCtrlV1::CigiViewCtrlV1(), CigiViewCtrlV2::CigiViewCtrlV2(), CigiViewCtrlV3::CigiViewCtrlV3(), GetYOff(), CigiViewCtrlV3::Pack(), CigiViewCtrlV2::Pack(), CigiViewCtrlV1::Pack(), SetYOff(), CigiViewCtrlV3::Unpack(), CigiViewCtrlV2::Unpack(), and CigiViewCtrlV1::Unpack().

bool CigiBaseViewCtrl::YOffEn [protected]

YOffEn
Y Offset data valid and to be used.

Definition at line 323 of file CigiBaseViewCtrl.h.

Referenced by CigiViewCtrlV1::CigiViewCtrlV1(), CigiViewCtrlV2::CigiViewCtrlV2(), CigiViewCtrlV3::CigiViewCtrlV3(), CigiViewCtrlV3::Pack(), CigiViewCtrlV2::Pack(), CigiViewCtrlV3::Unpack(), and CigiViewCtrlV2::Unpack().

float CigiBaseViewCtrl::ZOff [protected]

ZOff
The Offset from the specified entity's origin along the entity's Z axis.

Definition at line 368 of file CigiBaseViewCtrl.h.

Referenced by CigiViewCtrlV1::CigiViewCtrlV1(), CigiViewCtrlV2::CigiViewCtrlV2(), CigiViewCtrlV3::CigiViewCtrlV3(), GetZOff(), CigiViewCtrlV3::Pack(), CigiViewCtrlV2::Pack(), CigiViewCtrlV1::Pack(), SetZOff(), CigiViewCtrlV3::Unpack(), CigiViewCtrlV2::Unpack(), and CigiViewCtrlV1::Unpack().

bool CigiBaseViewCtrl::ZOffEn [protected]

ZOffEn
Z Offset data valid and to be used.

Definition at line 329 of file CigiBaseViewCtrl.h.

Referenced by CigiViewCtrlV1::CigiViewCtrlV1(), CigiViewCtrlV2::CigiViewCtrlV2(), CigiViewCtrlV3::CigiViewCtrlV3(), CigiViewCtrlV3::Pack(), CigiViewCtrlV2::Pack(), CigiViewCtrlV3::Unpack(), and CigiViewCtrlV2::Unpack().

The documentation for this class was generated from the following files:
Generated on Wed Apr 29 09:00:06 2009 for CCL by  doxygen 1.4.7
